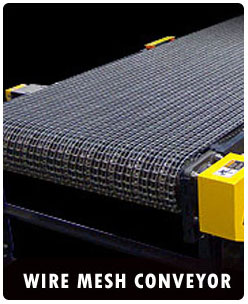

Wire mesh conveyor Manufacturer in India
Products › Wire Mesh Conveyor
Neo Conveyors is a leading wire mesh conveyor manufacturer in India since 2007 — building stainless steel wire mesh belt conveyors for food processing, heat treatment, pharma, automotive, and industrial applications. High-temperature rated, food-grade, corrosion-resistant. Custom-built. PAN India installation.
Experience
Installations
Overview
What Is a Wire Mesh Conveyor?
A wire mesh conveyor is a material handling system that uses an open-weave metal belt — typically stainless steel SS304 or SS316 — instead of a solid rubber or PVC belt. The open mesh structure allows hot air, cold air, steam, water, or oil to pass freely through the belt surface and directly through the product being conveyed — making it the only conveyor type suitable for processes that require simultaneous conveying and airflow through the product.
Neo Conveyors' wire mesh belt conveyors are designed for industries that require heat resistance, durability, corrosion resistance, and easy cleaning — including food processing, heat treatment, pharmaceutical, automotive, and industrial automation plants across India and internationally.
As a specialist wire mesh conveyor manufacturer in India based in Ghaziabad (Delhi NCR), we custom-engineer every system to your belt width, length, temperature requirement, belt weave, and frame specification — fabricated and installed by our own team, PAN India.
Wire mesh conveyors are designed for:
- Baking, frying, and oven conveying — open airflow through product
- Cooling and freezing — cold air passes through the mesh and product
- Drying — steam or hot air circulation through the product layer
- Heat treatment and furnace conveying — up to 1000°C
- Washing and rinsing — water drains freely through the mesh
- Pharmaceutical tablet handling — hygienic, easy-clean construction
- Automotive component washing and drying
- Plastic and household product washing lines
- Industrial automation — continuous, reliable material flow
Working Principle
How a Wire Mesh Conveyor Works
The wire mesh conveyor works on the same drive principle as a belt conveyor — but the belt is replaced by an open-weave metal mesh that creates a continuous, breathable, rigid conveying surface.
Need to integrate a wire mesh conveyor into an oven, freezer tunnel, or wash station? Share your process temperatures and product dimensions — our engineers will specify the right belt weave, material, and drive configuration — free of charge.
Belt Types
Types of Wire Mesh Conveyor Belts
Neo Conveyors supplies wire mesh conveyors with five standard belt weave types — each suited to different product sizes, temperatures, and process requirements.
Flat Wire Mesh Conveyor
Simple flat-wire weave — stable, self-cleaning surface ideal for general food processing, baking, and drying applications. Easy to clean and inspect.
Balanced Weave Wire Mesh Conveyor
Alternating left and right spirals locked together — creates a tight, uniform mesh opening. Ideal for small products, tablets, and pharmaceutical handling.
Spiral Wire Mesh Conveyor
Coiled wire spirals interlocked for strength and flexibility. Handles curves, inclines, and tight radii — suited for multi-level or curved conveyor paths.
Stainless Steel Wire Mesh Conveyor
SS304 or SS316 mesh belt — corrosion-resistant, food-grade, easy-clean. Standard for food processing, pharma, and chemical wash environments.
Heavy Duty Wire Mesh Conveyor
Thick-wire high-temperature rated mesh for furnace conveying, heat treatment, annealing, and sintering processes — handles extreme temperatures reliably.
Technical Data
Technical Specifications
Every wire mesh conveyor is custom-engineered to your product, process temperature, belt width, and application environment.
| Parameter | Specification |
|---|---|
| Belt Material | SS304 Stainless Steel / SS316 Stainless Steel / Galvanised Iron (GI) / Carbon Steel |
| Conveyor Width | 200 mm to 2000 mm — as per product and process requirement |
| Conveyor Length | Customised — no standard limit; designed to process zone and plant layout |
| Temperature Range | Ambient to 1000°C depending on belt material and weave specification |
| Belt Weave Type | Flat Wire / Balanced Weave / Spiral / Eye Link / Rod Reinforced |
| Mesh Opening Size | Customised — smaller openings for pharma/tablets, larger for bulk food products |
| Load Capacity | Customised per metre width — depends on belt specification and support structure |
| Speed Control | Fixed Speed or VFD (Variable Frequency Drive) — adjustable line speed |
| Frame Material | Mild Steel (MS) Powder Coated / SS304 / SS316 |
| Drive Type | Geared motor — head drive or centre drive depending on length |
| Drive Motor | 0.25 HP to 10 HP — as per conveyor length and load |
| Belt Tracking | Self-tracking or guided side rails — prevents lateral drift |
| Surface Finish | Powder Coated / Food Grade / Pharma Grade / Wash-Down Compatible |
| Power Supply | 415 V, 3 Phase, 50 Hz (single-phase for small systems) |
Industries Served
Industry-Specific Applications of Wire Mesh Conveyors
Wire mesh conveyors are the preferred choice wherever a solid belt cannot be used — because the product or process requires airflow, drainage, or extreme temperatures.
🍎 Wire Mesh Conveyors for Food Processing
The food processing industry is the largest user of wire mesh belt conveyors. The open mesh allows hot air to bake evenly, cold air to freeze uniformly, and water to drain cleanly — without product contact with a solid surface. Applications include biscuit and bread baking, frying, tunnel freezing, spiral cooling, product washing, and drying after washing. SS304 and SS316 belts meet food-contact hygiene requirements.
🔥 Wire Mesh Conveyors for Heat Treatment Plants
Heat treatment furnaces — annealing, tempering, hardening, carburising, and sintering — require conveyors that can operate at temperatures from 400°C to over 1000°C without deformation or failure. Heavy-duty high-temperature wire mesh belts in carbon steel or refractory alloy are specified for these applications. Neo Conveyors supplies and installs complete furnace conveyor systems for heat treatment plants across India.
💊 Wire Mesh Conveyors for Pharmaceutical Industry
Pharmaceutical tablet coating, drying, and inspection lines require hygienic, easy-clean conveyors with no product-trapping crevices. SS316 stainless steel wire mesh belts with GMP-compliant frame construction are the standard specification. Open mesh design allows drying air to reach every tablet surface simultaneously — reducing drying time and improving coating uniformity.
🚗 Wire Mesh Conveyors for Automotive Industry
Automotive component washing, phosphating, passivation, and drying lines use wire mesh conveyors where components must be conveyed through liquid wash stages and then through drying ovens. The open mesh drains liquid cleanly and withstands the drying temperatures — on a single continuous conveyor path through the entire wash-dry sequence.
🏠 Wire Mesh Conveyors for Plastic & Household Product Industry
Plastic moulded parts, household utensils, and consumer goods lines use wire mesh conveyors for washing, cooling, and drying — particularly after injection moulding or surface treatment. The rigid mesh surface supports complex-shaped products that would be unstable on a solid belt.
Food Processing
Baking, frying, cooling, freezing, drying, washing
Heat Treatment
Furnace conveying, annealing, hardening, sintering
Pharmaceutical
Tablet drying, coating inspection, hygienic handling
Automotive
Component washing, phosphating, drying lines
Plastics & Household
Moulded parts washing, cooling, drying
Electronics
PCB washing, drying, and reflow conveying
Features
Key Features of Wire Mesh Conveyors
Woven metal mesh construction withstands high temperatures up to 1000°C, heavy product loads, and continuous operation in harsh industrial environments
Open mesh allows hot air, cold air, steam, or water to pass directly through the product — baking, drying, cooling, or washing simultaneously
SS304 or SS316 stainless steel belts and frames resist corrosion from wash chemicals, acidic food environments, and industrial cleaning agents
Open mesh surface has no product-trapping crevices — belt and frame can be fully washed down for food and pharma hygiene compliance
Rigid mesh surface provides stable support for irregular-shaped or fragile products — reduces product damage compared to roller or chain alternatives
Available in 200 mm to 2000 mm widths and any length — designed to your oven, freezer tunnel, wash station, or plant layout dimensions
Adjustable belt speed via variable frequency drive — control product dwell time in baking, drying, or heat-treatment zones precisely
Performs reliably in conditions of dust, oil, heat, moisture, and abrasive materials — where standard rubber belt conveyors would fail prematurely
Advantages
Advantages of Wire Mesh Conveyors
Wire mesh conveyors deliver measurable production, hygiene, and operational advantages over solid belt and chain alternatives — particularly in food, heat treatment, and wash-dry applications.
Open mesh structure allows simultaneous conveying and airflow — no other conveyor type enables baking, cooling, or drying through the belt
Operates inside furnaces, ovens, and heat treatment equipment — temperatures where rubber or plastic belt conveyors cannot function
Open mesh design drains wash water freely — no standing water, no hidden contamination zones, fast CIP or manual cleaning
Stainless steel mesh and frame resists food acids, wash chemicals, brine, steam, and industrial cleaning agents over years of continuous operation
Metal mesh belt outlasts rubber or PVC belts in high-temperature or wash-down environments by a factor of three to five times
Product can be washed through the mesh and dried through the same mesh on a continuous conveyor — no transfer between conveyors needed
SS304 / SS316 with food-compliant lubricants and GMP frame design — directly meets food safety and pharmaceutical hygiene standards
Stable, rigid mesh surface prevents product shifting or falling during conveying — critical for fragile food products and precision components
Comparison
Wire Mesh Conveyor vs Belt Conveyor — Which Should You Choose?
The most common question buyers ask when specifying a conveyor for food, heat treatment, or wash-dry applications. Here is a direct comparison on the factors that matter most.
| Feature | Wire Mesh Conveyor | Belt Conveyor (Rubber/PVC) |
|---|---|---|
| Heat resistance | ✓ Excellent — up to 1000°C | ✗ Limited — max 80–120°C for PVC |
| Airflow through belt | ✓ Excellent — open mesh design | ✗ Poor — solid surface blocks airflow |
| Washing / draining | ✓ Excellent — water drains freely | ✗ Water pools on belt surface |
| Cleaning ease | ✓ Easy — open mesh, no crevices | ⚠ Moderate — belt edge accumulates |
| Food applications | ✓ Excellent — baking, frying, cooling | ✓ Good — flat dry transport only |
| High temperature use | ✓ Yes — furnace and oven conveying | ✗ Not suitable above 120°C |
| Corrosion resistance | ✓ SS304 / SS316 — excellent | ⚠ Limited — PVC degrades in acid/heat |
| Service life | ✓ Long — metal mesh outlasts rubber | ⚠ Moderate — belt replacement needed |
| Best for | Baking, drying, cooling, heat treatment, washing, pharma, high-temp industrial | Flat material transfer, general conveying, low-temperature applications |
For general flat transfer, see: Belt Conveyors | For assembly line use, see: Assembly Line Conveyors
Why Neo Conveyors
Why Choose Neo Conveyors — Wire Mesh Conveyor Manufacturer
Two decades of wire mesh conveyor engineering for food, heat treatment, pharma, and industrial plants — not a new entrant to the market
Proven track record of successful installations across food processing, FMCG, pharma, heat treatment, and automotive sectors PAN India
All wire mesh conveyors designed and fabricated at our Ghaziabad plant — full control over quality, lead time, and specification accuracy
Our own engineers install, commission, and test every wire mesh conveyor system — Delhi, Mumbai, Pune, Chennai, Ahmedabad, Bengaluru
We supply wire mesh conveyor systems internationally — not only within India
Spare mesh belts, replacement bearings, AMC, and technical support available after every installation across India
Learn more: About Neo Conveyors | Gallery | Technical Support
See It In Action
Wire Mesh Conveyor — Live at Our Plant
Watch Neo Conveyors stainless steel wire mesh belt conveyor in operation — engineered for high-temperature, food-grade, and industrial applications across India.
Share your product type, process temperature, belt width, and plant layout — our engineers will specify and quote the right wire mesh conveyor system.
FAQ
Frequently Asked Questions
What is a wire mesh conveyor used for?
Wire mesh conveyors are used for transporting products through processes that require airflow — including baking, cooling, drying, frying, freezing, heat treatment, washing, and pharmaceutical tablet handling. The open wire mesh surface allows hot or cold air, water, or steam to pass through the product from below and above simultaneously — making it the only conveyor type that can combine conveying with active air or liquid processing.
What temperature can a wire mesh conveyor withstand?
Stainless steel wire mesh conveyors from Neo Conveyors can withstand temperatures up to 1000°C depending on belt material and weave type. Standard SS304 belts handle up to 800°C. High-alloy or refractory mesh belts handle furnace temperatures above 1000°C. This makes wire mesh conveyors the only viable conveyor type for furnace conveying, annealing, hardening, and sintering operations.
Which industries use wire mesh conveyors?
Food processing (baking, frying, cooling, freezing), heat treatment and furnace operations, pharmaceutical tablet handling and drying, automotive component washing and drying, plastic and household product lines, electronics PCB washing and drying, and industrial automation — any industry where a solid belt would block airflow, trap liquid, or fail at operating temperature.
Are stainless steel wire mesh conveyors food grade?
Yes. SS304 and SS316 stainless steel wire mesh belts with stainless steel frames are fully food-grade, corrosion-resistant, easy to clean, and GMP-compliant — suitable for direct food contact in baking, frying, cooling, and food processing lines. SS316 provides additional resistance to chloride-based cleaning chemicals used in food factories.
Can wire mesh conveyors be customised?
Yes — fully. Neo Conveyors custom-engineers every wire mesh conveyor to your belt width (200 mm to 2000 mm), conveyor length, belt weave type, mesh opening size, temperature rating, frame material, speed control specification, and integration requirements. No standard-size catalogue — every system is designed for the application.
What belt materials are available for wire mesh conveyors?
SS304 stainless steel (standard food-grade, up to ~800°C), SS316 stainless steel (higher corrosion resistance, chemical environments), galvanised iron (GI — cost-effective for non-food industrial use), and carbon steel or high-alloy wire (for furnace and heat treatment above 800°C). Material is selected based on your temperature range, product contact, and cleaning method.
What is the price of a wire mesh conveyor in India?
Price depends on belt width, conveyor length, belt material (GI, SS304, or SS316), weave type, frame specification, and any integration requirements. Contact Neo Conveyors at +91-9654112235 or sales@neoconveyors.com for a detailed no-obligation quotation.
Do you install wire mesh conveyors across India?
Yes — PAN India installation and commissioning by our own engineers, including belt tensioning, speed calibration, and production trial run before handover. Details at www.neoconveyors.com/technical-support.
