Horizontal belt conveyor Manufacturer in India
Horizontal Belt Conveyor Manufacturer
in Ghaziabad, Delhi NCR & India
Flat belt conveyor systems — slider bed, roller bed, and troughed — forming the backbone of production floors, packaging lines, warehouses, and assembly operations. The workhorse that links every stage of your plant into one continuous, uninterrupted material flow. Fabricated in Ghaziabad. PAN India installation since 2007.
The Workhorse of Every Production Floor
Neo Conveyors is a specialist horizontal belt conveyor manufacturer in India since 2007. While inclined conveyors move goods between floor levels and telescopic conveyors reach into trucks, the horizontal belt conveyor does the quiet, essential work in between — linking every stage of your production line into one continuous, uninterrupted flow. A flat belt conveyor moves your product from Point A to Point B: consistently, quietly, and without interruption. From raw material intake to finished goods dispatch, a Neo Conveyors horizontal belt conveyor is working at every station — moving, feeding, accumulating, and presenting products to operators, machines, and packaging equipment with precision. We manufacture three variants: slider bed, roller on bed, and troughed — each matched to a specific load, product type, and application environment.

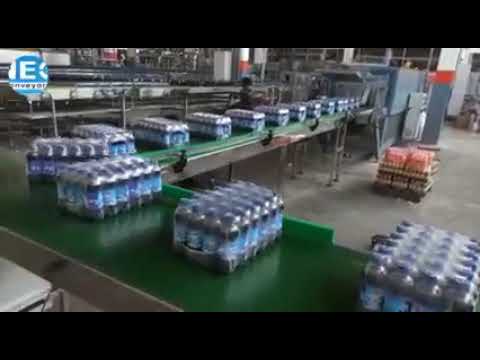

Horizontal Belt Conveyor — Live Production Operation
Watch Neo Conveyors horizontal belt conveyor systems running in real packaging and production environments — controlled belt speed, smooth carton flow, and continuous operation in customer plants.
▶ Horizontal Belt Conveyor — Packaging Line Operation | Neo Conveyors
▶ Neo Conveyors — Manufacturing & Installation Overview
How a Horizontal Belt Conveyor Works
Four components work together to deliver continuous, reliable flat material transfer — each engineered to your product weight, belt width, and required line speed.
Drive Pulley & Geared Motor
A geared motor (or drum motor) drives the head pulley at one end of the conveyor. Motor power is sized to belt width, conveyor length, and product load. VFD allows variable speed from the control panel without stopping the line.
Continuous Belt Loop
A PVC, PU, or rubber belt forms a continuous loop between the drive pulley and the tail (return) pulley. Products placed at the feed end travel to the discharge end on the upper carrying surface. Belt type is matched to your product and environment.
Slider Bed or Roller Support
The carrying run of the belt is supported either by a flat steel slider plate (slider bed — for light loads) or by spaced rollers (roller bed — for heavier loads and longer runs). Roller bed reduces motor load and belt wear for loads above 30–50 kg/m.
Self-Tracking & Take-Up
A take-up unit maintains correct belt tension to prevent slippage at the drive pulley. Self-tracking crown pulleys keep the belt running centred without manual adjustment — eliminating one of the most common belt conveyor maintenance issues.
3 Variants — Choose the Right Horizontal Belt Conveyor
Each variant is engineered for a specific load profile and application. Choosing correctly prevents motor overload, belt wear, and premature frame fatigue in your production environment.

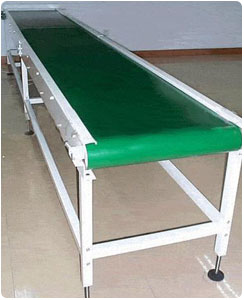

Slider Bed Belt Conveyor
A smooth flat steel plate supports the belt across its full width — the simplest, most economical horizontal conveyor for light-to-medium products. Ideal for cartons, pouches, bottles, and small packaged goods with flat, smooth bases that do not generate excessive friction on the carrying surface.
Roller on Bed Belt Conveyor
Spaced rollers under the belt replace the flat plate — dramatically reducing friction for heavier products and longer conveyor runs. Required when load-per-metre exceeds 50 kg, or when conveyor length exceeds 10–15 metres, to prevent motor overload and belt overheating on a slider bed.
Troughed Belt Conveyor
Three-roll troughing idlers create a cupped belt profile that contains and transports free-flowing bulk materials — grain, sand, coal, fertilizer, and minerals — that cannot be carried on a flat belt. High-capacity bulk transport at plant level without the vertical lift of a bucket elevator.
Horizontal Belt Conveyor Technical Specifications
All systems are custom-engineered to your product, plant layout, and throughput. Use the ranges below as a guide — every order is specified fresh to your exact requirement by our engineers at no charge.
| Belt Width | 300 mm to 1,500 mm — as per product dimensions |
| Conveyor Length | Custom — as per plant layout, unlimited |
| Belt Speed | 0.1 m/s to 2.5 m/s — fixed or VFD adjusted |
| Load Capacity | Up to 200 kg per metre — depends on variant |
| Bed Type | Slider bed (light) or Roller bed (heavy) |
| Belt Type | Rubber / PVC / PU / Food Grade / Anti-static |
| Drive Motor | 0.25 HP to 10 HP — depends on length and load |
| Speed Control | Fixed Speed or Variable Frequency Drive (VFD) |
| Frame Material | Mild Steel (MS) / SS304 / SS316 |
| Surface Finish | Powder Coated / Painted / Food Grade Polished |
| Side Guides | MS / SS / UHMW — custom height |
| Power Supply | 415 V, 3 Phase, 50 Hz |
Customisation Options
⚡ ESD / Anti-Static Belt
Anti-static belt surface and frame grounding for electronics, semiconductor, and precision instrument assembly lines.
🍎 Food Grade SS Construction
SS304/SS316 frame with PU or silicone belt — polished interior, hygienic seals, easy-clean washdown design for food and pharma.
📡 Sensor & PLC Integration
Presence sensors, barcode readers, vision systems, and reject gates integrated at any point along the conveyor run.
🔧 Low-Profile Frame
Reduced-height frame design for integration under machinery or in tight headroom spaces on production floors.
🔀 Curves & Merges
Horizontal curve sections, merging units, and diverting units available for complex multi-directional plant layouts.
Applications of Horizontal Belt Conveyors
The horizontal belt conveyor is the most universally applied conveyor type — present at every stage of modern industrial production. Here are the eight most common applications across Indian manufacturing plants.
Packaging Line Transfer
Cartons, pouches, and bottles between filling, sealing, labelling, and case packing machines — VFD speed matched to upstream machine output rate.
Production Floor Material Flow
Parts and sub-assemblies between machining, welding, painting, and assembly stations — the continuous backbone of every production floor.
Warehouse Material Movement
Cartons and totes from receiving to storage, and from picking stations to dispatch — flat horizontal movement across large warehouse floor areas.
Assembly Line Component Transfer
Feeding components from incoming stores to assembly workstations — timed delivery matched to assembly line takt time and station spacing.
E-Commerce Order Fulfilment
Parcel and shipment movement from packing stations to dispatch scan points and loading docks — high-speed, high-volume continuous operation.
Pharmaceutical Packaging
Blister packs, bottles, and cartons between blister machines, cartoners, and case packers — SS frame, PU belt, cleanroom-compatible design.
Food Processing Lines
Fresh produce, packed food, dairy, and bakery products on food-grade PU belt conveyors — washdown stainless steel design for GMP compliance.
Inspection & QC Stations
Slow-speed belt presenting products under lighting and vision systems for manual or automated inspection — integrated reject gate at end of run.
What Makes a Neo Conveyors Horizontal Conveyor Different
Every horizontal belt conveyor we manufacture includes these features as standard — not optional extras.
Self-Tracking Belt
Crown pulleys keep the belt running centred without manual adjustment — eliminating a major source of production downtime in packaging and assembly operations.
VFD Speed Control
Adjustable belt speed from the control panel without stopping the conveyor — synchronise with upstream packaging machines or downstream sorters at any production rate.
Quiet, Vibration-Free Operation
Low-noise smooth operation — critical for electronics, pharma, and precision assembly environments where vibration affects product quality or operator concentration.
Modular & Expandable
Conveyor sections join end-to-end for unlimited length runs. Curve sections, merging units, and diverters added for complex layout requirements as your line grows.
Full Automation Integration
Compatible with presence sensors, barcode readers, vision inspection, reject gates, and PLC/SCADA systems — mechanical and electrical integration by our team.
Food Grade & SS Options
SS304/SS316 frame with PU or silicone belt, polished interior surfaces, and washdown-rated seals — fully compliant for food, dairy, and pharmaceutical environments.
Industries Using Horizontal Belt Conveyors
The horizontal belt conveyor is the most widely deployed conveyor type across Indian industry. Every operation that needs continuous flat material transfer at production, packaging, or warehouse level uses one.
📦FMCG & Packaging
Between filling, labelling, cartoning, and end-of-line palletising. Speed matched to packaging machine output. Self-tracking belt runs 24×7 without drift or adjustment.
Packaging line conveyor🏭Warehousing & Distribution
Carton movement from goods-in to storage, and from picking stations to dispatch docks. Long-run roller-bed conveyors for large warehouses. VFD for variable throughput rates.
Warehouse flat conveyor🚗Automobile Manufacturing
Component transfer between machining and assembly stations. Roller-bed units for heavy cast components. Integrated with PLCs and barcode readers on automated production lines.
Production floor conveyor💊Pharmaceutical
Bottle, blister, and carton movement in packaging halls. SS316 frame with PU belt — washdown-rated, GMP-compliant, validated speed control for serialisation integration.
Pharma packaging conveyor💻Electronics Assembly
ESD-safe anti-static belt conveyors for PCB and electronic component handling. Quiet, vibration-free operation preventing component movement during transport.
Electronics assembly conveyor🍎Food Processing
Fresh produce, packed food, and dairy products on food-grade PU belts. Easy-clean hygienic frame design for washdown at shift end. Temperature-rated belts for cold chain.
Food grade belt conveyor🛒E-Commerce Fulfilment
High-speed parcel, packet, and carton movement from packing stations to sortation and loading dock areas. Multiple units joined end-to-end for long dispatch lane runs.
Fulfilment centre conveyor🔬Cosmetics & Personal Care
Between filling, assembly, labelling, and carton packing on cosmetic production lines. Cleanroom-compatible designs with minimal particulate generation from belt and drive.
Cosmetics line conveyorShare Your Product & Layout — Get Free Conveyor Design
Tell us your product dimensions, weight, required line speed, and available floor length. Our engineers will recommend the right variant, specify the belt type, and design the conveyor for your production environment — at no charge.
Manual Material Handling vs Horizontal Belt Conveyor
Operations managers across packaging, warehousing, and production who have switched from manual material flow to a belt conveyor system identify the same consistent improvements — throughput, consistency, and operator ergonomics.
| ❌ Manual Material Handling | ✅ With Horizontal Belt Conveyor |
|---|---|
| Workers carry, push, or wheel products between stations | Belt delivers each product to the next station automatically — zero manual transfer |
| Inconsistent timing between production stages creates queuing and idle time | Controlled VFD belt speed synchronises product arrival with upstream and downstream machines |
| Product damage from manual handling — drops, bumps, and rough transfers | Smooth controlled belt movement — product damage during transfer reduced to near zero |
| Worker fatigue from repetitive carrying compounds through the shift | Operators work at fixed ergonomic stations — no carrying, walking, or repositioning |
| Output per hour varies as workers pace slows through the shift | Belt speed is constant — same throughput at hour 1 and hour 8 |
| Adding throughput requires adding people — proportional cost scaling | Increase VFD belt speed — higher throughput with zero additional headcount |
| Product queuing blocks upstream machines — bottlenecks cascade backward | Accumulation sections prevent upstream stoppage from halting entire production |
Horizontal Belt Conveyor — Real Installations by Neo Conveyors
Three representative projects across packaging, warehousing, and production — showing the operational improvements that a correctly specified horizontal belt conveyor delivers from commissioning.
Slider Bed Conveyor — Carton Transfer Line
A consumer goods company running 3 packaging lines needed to transfer sealed cartons from the end of each carton sealer to a central labelling and palletising area 18 metres away. Manual cart movement between machines was creating a 12–15 minute backlog during peak production.
Neo Conveyors installed 3 slider-bed belt conveyors — 600 mm belt width, 18 m length each, VFD speed matched to carton sealer output — merging into a central accumulation conveyor feeding the labeller.
Roller on Bed Conveyor — Receiving to Storage
A large FMCG distribution centre receiving 800–1,200 cartons per hour from multiple inbound vehicles needed to move goods from the receiving dock to the storage zone 60 metres away. Manual pallet and cart movement could not keep pace with inbound receiving during morning peak.
Two parallel roller-bed belt conveyors — 800 mm width, 60 m length each — installed with VFD speed adjustable from 0.3 to 0.8 m/s for different product types. Roller-bed selected for the 60 m length and 80–120 kg/m load.
Anti-Static Belt Conveyor — PCB Assembly Transfer
An electronics manufacturer needed to transfer PCB assemblies between SMT machines, manual assembly stations, and test stations across a 40-metre production floor. Existing manual handling was causing ESD damage and component displacement — resulting in a 6–8% board rework rate.
Neo Conveyors designed an ESD-safe slider-bed conveyor — 400 mm anti-static belt, SS304 frame, grounded throughout — with dedicated slow-speed zones (0.08 m/s) at each station and normal transfer speed (0.4 m/s) between stations.
Horizontal Belt Conveyor vs Inclined Belt Conveyor vs Roller Conveyor
The three most common belt and roller conveyor types for unit load handling — compared to help you specify the right system for each zone of your plant without over-engineering or under-specifying.
| Factor | ✅ Horizontal Belt Conveyor | Inclined Belt Conveyor | Roller Conveyor |
|---|---|---|---|
| Operating plane | Flat — same floor level only | Inclined — between floor levels | Flat — same floor level only |
| Products without flat base (bags, loose items) | Yes — continuous belt surface | Yes — with cleated belt | Not suitable — gaps between rollers |
| Heavy pallet loads | Limited — belt wears under heavy point loads | Not suitable | Excellent — rollers support high point loads |
| Product accumulation / queuing | Limited — belt motor overloads if stopped under load | Not suitable | Excellent — gravity roller naturally accumulates |
| Food / pharma hygiene | Excellent — PU belt, SS frame, washdown design | Good — PU belt and SS available | Good — SS rollers and frames available |
| Capital cost | Low to moderate — simplest drive system | Moderate — inclined frame and cleated belt | Low (gravity) to moderate (powered) |
| Best application | Packaging, carton flow, assembly transfer, food | Floor-to-floor product elevation | Pallet handling, accumulation, rigid-base products |
For floor-to-floor elevation: Inclined Belt Conveyor → | For pallet and heavy rigid loads: Roller Conveyors →
Why Choose Neo Conveyors as Your Horizontal Belt Conveyor Manufacturer?
Manufacturer Since 2007 — Not a Distributor
Every horizontal belt conveyor is designed and fabricated in-house at our Ghaziabad plant. We do not source, stock, or resell — we manufacture to your exact specification.
Line Integration Expertise
We do not supply a conveyor in isolation — we design it to work within your complete production line layout, matching speed to adjacent machines and integrating sensors where required.
Widest Customisation Range
Belt width 300–1,500 mm, any length, three bed types, five belt materials, MS or SS frame, with or without side guides, with or without PLC integration — all to your exact requirement.
PAN India — Own Engineers Install & Commission
Site installation, belt tensioning, drive alignment, and speed commissioning by Neo Conveyors' own engineers. No third-party contractors — we remain accountable after handover.
1,000+ Installations — Proven Reliability
Across packaging, FMCG, pharma, electronics, and warehouse operations. 18+ years of manufacturing experience and export track record in UAE and Africa.
AMC & Long-Term Spare Parts Support
Belt replacement, VFD servicing, pulley and idler replacement, and Annual Maintenance Contracts available for the full operational life of every conveyor system.
Horizontal Belt Conveyor — Buyer FAQs
Learn More — Horizontal Belt Conveyor Guides
In-depth technical and application guides for production engineers and purchasing managers specifying horizontal belt conveyors for their plants.
Belt Conveyor Complete Guide — Types, Specs & Applications
Everything you need to know about belt conveyors — flat, inclined, troughed, and telescopic — for Indian industrial buyers.
Industrial Conveyor for Electronics Manufacturing
ESD safety requirements, anti-static belt selection, and cleanroom-compatible conveyor design for electronics plants.
Assembly Line Conveyor Guide — Takt Time & Workstation Design
How to specify flat belt conveyors for assembly operations, calculate takt time, and design workstation spacing.
Warehouse Conveyor Systems Guide
Belt, roller, and chain conveyor selection for warehouses — receiving, storage, picking, and dispatch automation.
Conveyor Belt Types — PVC vs PU vs Rubber vs Anti-Static
How to choose the right belt material for your product, environment, and throughput speed requirement.
All Conveyor Blogs & Technical Guides
Browse all Neo Conveyors technical articles, installation guides, and industry application blogs.
Horizontal Belt Conveyor Manufacturer Across India
Neo Conveyors supplies and installs horizontal belt conveyor systems — slider bed, roller bed, and troughed — across all major industrial, packaging, and manufacturing cities in India from our Ghaziabad manufacturing facility.
Get a Custom Horizontal Belt Conveyor Quote — Free
Tell us your product type, dimensions, weight, required belt speed, and available floor length. Our engineers will recommend the right variant, specify the belt, and design your conveyor at no charge.
